Product Description

STYLE	MODEL NO	STAGES	STROKE	1ST STAGE DI	VEHICLE BODY LENGTH(m)
Front-end hydraulic cylinder	4-160-4280	4	4280	160	5.5-5.6
		4-180-4280	4	4280	180	5.5-5.6
		4-180-4650	4	4650	180	5.8-6.1
		4-180-5000	4	5000	180	6.5-7.3
		4-180-5390	4	5390	180	6.6-7.8
		4-180-5780	4	5780	180	6.8-8.0
		4-196-5460	4	5460	196	6.6-7.8
		5-196-5780	5	5780	196	6.8-8.0
		5-196-6180	5	6180	196	7.5-8.2
		5-200-7300	5	2000	200	8.0-9.0
		5-214-7800	5	78002	214	9.0-10.0

hydraulic cylinder

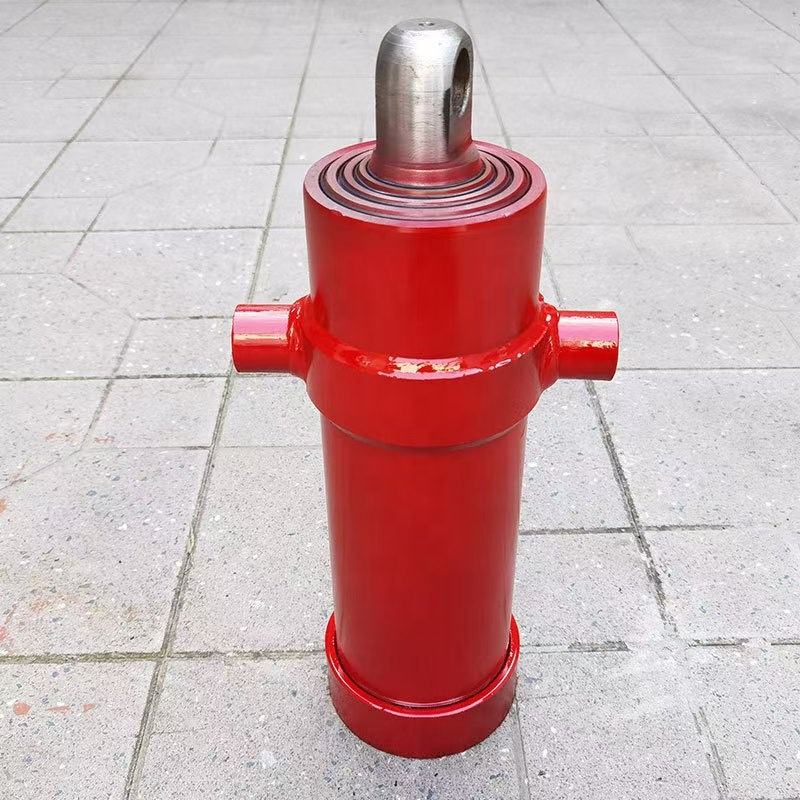

The cylinder is installed in the front part of the dump truck, which circumvents the shortcomings of the traditional belly-lift hydraulic cylinder for dump truck, and avoids the drawbacks of complicated structure, large combined height of cargo box floor and main frame, high centre of gravity, and bad stability of the whole vehicle. Single-acting piston type hydraulic cylinder is suitable for engineering host dump truck. Wider temperature resistance range, can meet the use requirements in more areas.

Our company was established in 2018, It is situated in liaocheng economic development zone, Shandong province,and occupies about 66000 square meters.We have more than 100 sets of equipments. The main ones include automatic gas shielded welding machine,deep hole boring machines, CNC lathes, cylindrical grinder, automatic washing machine, automatic installing machines,automatic hydraulic cylinder performance test bench, automatic painting line, and so on.

Q1: How about the quality?
Our cylinders can replace HYVA cylinder well, with same technical details and mounting sizes.

Q2: What's your cylinder's advantages ?
The cylinders are manufactured by advanced equipments and made under strictly quality control processing.The steel is tempered and all raw materials are good quality from world famous companies.Competitive price!

Q3: When your company be established ?
Our company be established in 2017, but professional engaged in hydraulic cylinders system matching for over 30 years .We had passed IATF16949:2016 Quality control system, ISO9001, CE.

Q4: How about the delivery time ?
30 days approximately.

Q5: How about the cylinder's quality gurantee ?
One year.
