Small Multi-stage Hydraulic Cylinder Manufacturer 3/4/5 Can Be Customized with Superior Performance

Donte Mine safetyRational dust cap design,longer working life eye boltdesign, easy to installDonte Mine safetyMaterial: 27Simn seamless steel Chrome finish, good anti-corrosionDonte Mine safetyImproved dust cap design,Better protectionDonte Mine safetyUpper trunnionChasis trunnionDonte Mine safetyCo......

Send Inquiry

Product Description

Donte Mine safety

Rational dust cap design,longer working life eye boltdesign, easy to install

Donte Mine safety

Material: 27Simn seamless steel Chrome finish, good anti-corrosion

Donte Mine safety

Improved dust cap design,Better protection

Donte Mine safety

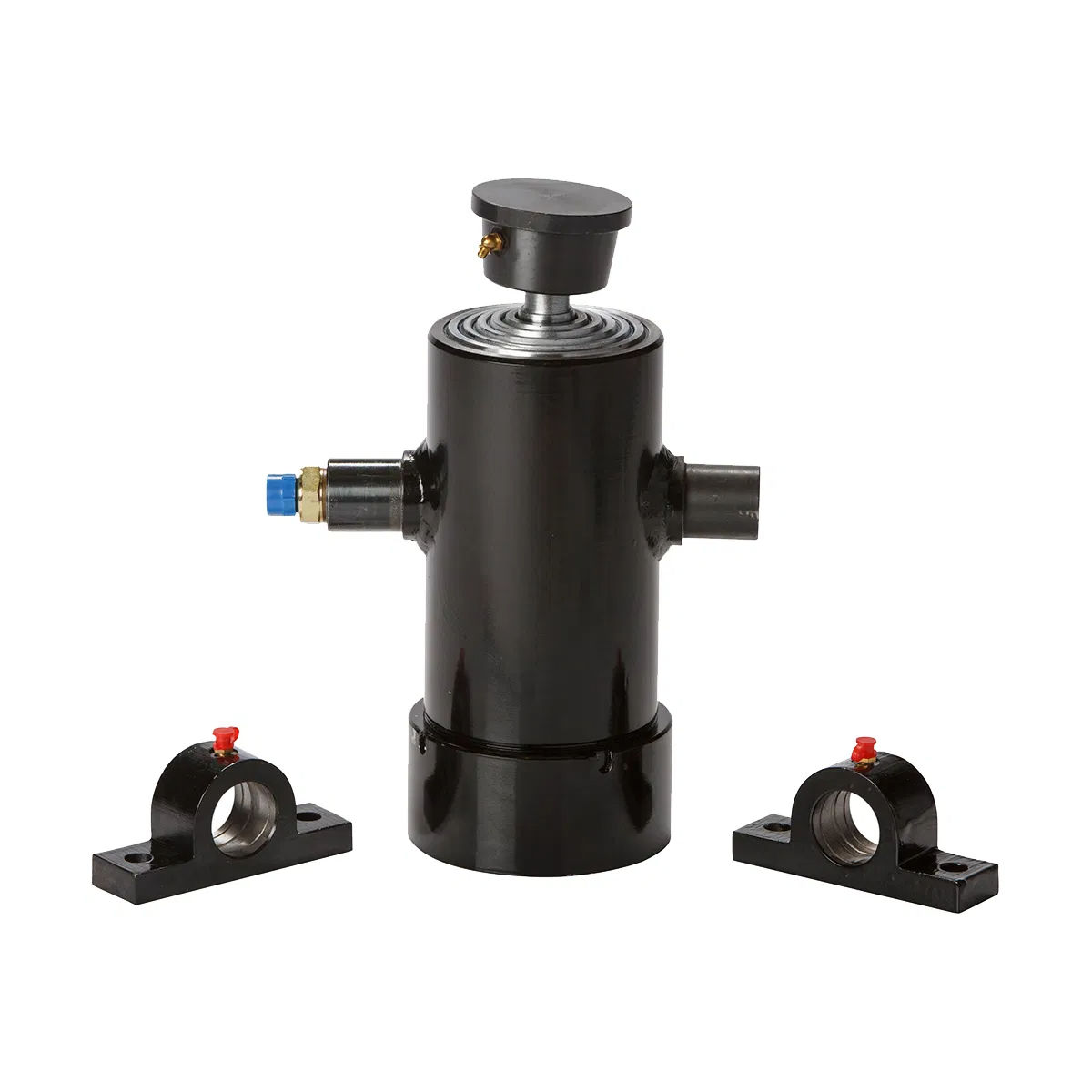

Upper trunnion

Chasis trunnion

Donte Mine safety

Color: black or red or customized

Donte Mine safety

Good quality dust. proof sealing, Oilsealing etcsealing brand Haliteupgraded slider

design

00:00

Dump truck multistage hydraulic cylinder
Type	cylinder dia	rated pressure	installation distance	stroke	total length	weight
Type		(mm)	(MPA)	(mm)	(mm)	(mm)	(kg)
FC129-3-3220	129	22	343	3220	1387	191
FC129-4-3480	129	22	343	3480	1218	178
FC137-3-3830	137	22	343	3830	1640	244
FC137-3-4280	137	22	343	4280	1860	268
FC137-4-4280	137	22	343	4280	1455	236
FC157-4-3830	157	22	343	3830	1350	260
FC157-4-4650	157	22	343	4650	1555	280
FC157-4-5000	157	22	343	5000	1650	300
FC157-5-3830	157	22	343	3830	1170	230
FC157-5-4650	157	22	343	4650	1275	245
FC179-4-4280	179	22	343	4280	1480	235
FC179-4-5390	179	22	343	5390	1755	360
FC179-4-6100	179	22	343	6100	1940	390
FC179-5-3830	179	22	343	3830	1170	265
FC179-5-4650	179	22	343	4650	1282	283
FC179-5-5000	179	22	343	5000	1405	305
FC179-5-5800	179	22	343	5800	1570	350
FC179-5-6300	179	22	343	6300	1655	360
FC179-5-7300	179	22	343	7300	1850	400
FC191-5-5780	191	22	343	5780	1530	273
FC191-5-6500	191	22	343	6500	1670	410
FC191-5-6800	191	22	343	6800	1735	738
FC191-5-7300	191	22	343	7300	1835	458
FC191-54-6100	191	22	343	6100	1955	273
FC196-4-6180	196	22	343	6180	1940	479
FC196-5-6350	196	22	343	6350	1710	450
FC202-4-6100	202	22	343	6100	1935	479
FC202-5-6800	202	22	343	6800	1765	465
FC202-6-7000	202	22	343	7000	1570	440
FC214-5-7300	214	22	343	7300	1900	530
FC214-7-7600	214	22	343	7600	1455	450
FC240-5-9030	240	22	343	9030	2270	820
Pipe dia:
202/179/157/137/118/99/80
240/214/191/169/149/129/110/90/70

Title goes here.

1. Founded in 2018, Raydafon?Technology?Group?Co.,Limited is a manufacturer specializing in the research, development and manufacture of hydraulic equipment and cylinders. The company is located in Xuying Town, Liaocheng City, Shandong Province. The company has developed rapidly, operated in good faith, and established good cooperative relations with all over the world. Our main business includes the design and manufacture of hydraulic cylinders, hydraulic components and hydraulic systems. We can produce different types of hydraulic products according to your needs.

2. Exporting countries of our company: Our products are exported to more than 100 countries such as the United States, Mexico, Canada, Spain, Russia, Singapore, Thailand, India and so on.

3. Role to customers: customized according to the size and material quality provided by customers, support non-standard customization. Ability to measure, survey and issue technical plans.Provide one-stop service during construction, logistics and distribution, and after-sales service to meet customers' needs.

4. Corporate services-we provide:https://sdyoubaite.en.alibaba.com/company_profile.html 1)Good quality control 2)Very competitive price 3)The most technologically advanced products 4)The most professional consumer electronics team 5)OEM and ODM services with smooth and effective communication
