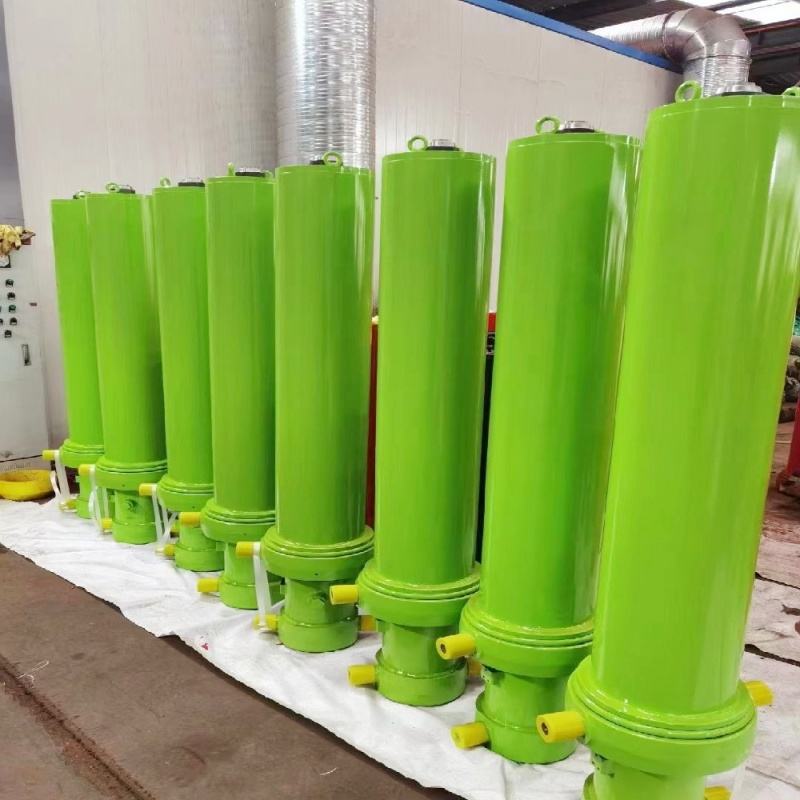

North America Standard Multi-Stage Hydraulic Cylinders for Dump Trucks - Quick Lifting & Long-Lasting

Recommended by sellerTruck Crane Extended Cylinder High Quality Hydraulic Cylinder Multi-section Telescopic Hydraulic Cylinder$280-300 / dozen1 dozenDouble Acting Hydraulic Thumb Cylinder Hydraulic Cylinder for Press Machines$280-300 / dozen1 dozenLow Cost Hydraulic Cylinders Flanged Hydraulic Cylin......

Send Inquiry

Product Description

Hydraulic Support Jack
Work Press	Customized
Delivery Time	Discuss delivery time based on order quantity
Cylinder Model	Rated pressure (MPa)	Maximum Cylinder Diameter (mm)	aximum thrust(T)	Stroke (mm)	M
4TG-E150*830ZJ/A	16	156	30	830	M22*1.5 internal thread
4TG-E140*800ZJ/A	16	141	25.5	800	M27*2 internal thread
4TG-E140*730ZJ/A	16	141	25.5	730	M27*2 internal thread
4TG-E135*800ZJ/A	16	141	25.5	800	M27*2 internal thread
4TG-E135*730ZJ/A	16	141	25.5	730	M27*2 internal thread
4TG-E130*750ZJ/A	16	135	23.4	750	M27*2 internal thread

Sanitation Equipment Cylinder

Work Press

Customized

Rod Diameter

Customized

Journey

Customized

Cylinder height

Customized

Applicable Media

Hydraulic Oil

Work Pressure

20Mpa Or Customized

Application

Various Hydraulic Equipment

Excavator Bucket Cylinder
Work Press	Customized
Delivery Time	iscuss delivery time based on order quantity
model	Installation Distance (mm)	Journey(mm)	Cylinder Diameter (mm)	Rod Diameter (mm)	Work Pressure (MPa)	Oil Port Size (mm)


HSG-110/70*350-00	680	350	110	70	25	G1/2”
HSG-CA-CA-125/70X200-00	665	200	125	70	20	M16*1.5
SG-G220X800-00	900	800	220	160	20	G1/2”
HSG-CA-CA-300/220X2180-00	3100	300	220	2180	20	G1/2”
HSG-340/250*1200-00	990	340	250	1200	25	G1/2”

Mining Machinery Cylinder

Work Press

Customized

After-sales

One-year warranty

Delivery Time

Discuss delivery time based on order quantity

Material

27 Silicon Manganese

Piston rod material

42 CrMo Forging

color

Customizable

Sanitation Equipment Cylinder/Agricultural machinery cylinder
Work Press	Customized
model	Product Name	Cylinder Diameter	Rod Diameter	Journey	Installation Distance	Mounting Holes	Work Pressure	Operating Temperature
Split Station	Displacement Cylinder	100	70	3200	20	50	18 1	homoeothermy
		Hook Cylinder	80	45	125	430	35	16	homoeothermy
		Main Push Head Cylinder	160	110	2700	1000	60	16	homoeothermy
		Lock Box Cylinder	63	32	140	420	25	16	homoeothermy
		Push-Pull Box Cylinder	63	32	240	108	25	16	homoeothermy
		Door Lifting Cylinder	63	35	1010	92	25	16	homoeothermy
		Flip Cylinder	100	70	560	890	50	16	homoeothermy
		Push Head Cylinder	125	90	1625	2120	50	16	homoeothermy
Vertical Stand	Safety Hook Cylinder	50	28	125	365	25	18	homoeothermy
		Pressing Cylinder	250	180	1850	1000	180球头	25	homoeothermy
		Hanging Box Cylinder	50	28	145	405	25	18	homoeothermy
		Push Plate Cylinder	145	63	3900	1800	50	21	homoeothermy
		Pressing Cylinder	180	125	1450	700	70	25	homoeothermy
		Gate Cylinder	63	45	1300	500	25	18	homoeothermy
All-In-One Station	Push Head Cylinder	110	80	800	1100	45	16	homoeothermy
		Tailgate Cylinder	63	45	520	880	25	16	homoeothermy
		Flip Cylinder	100	70	530	930	40	16	homoeothermy
		Rear Door Locking Cylinder	50	28	100	355	17	16	homoeothermy
Compression garbage truck cylinder
Hook-Arm Vehicle
