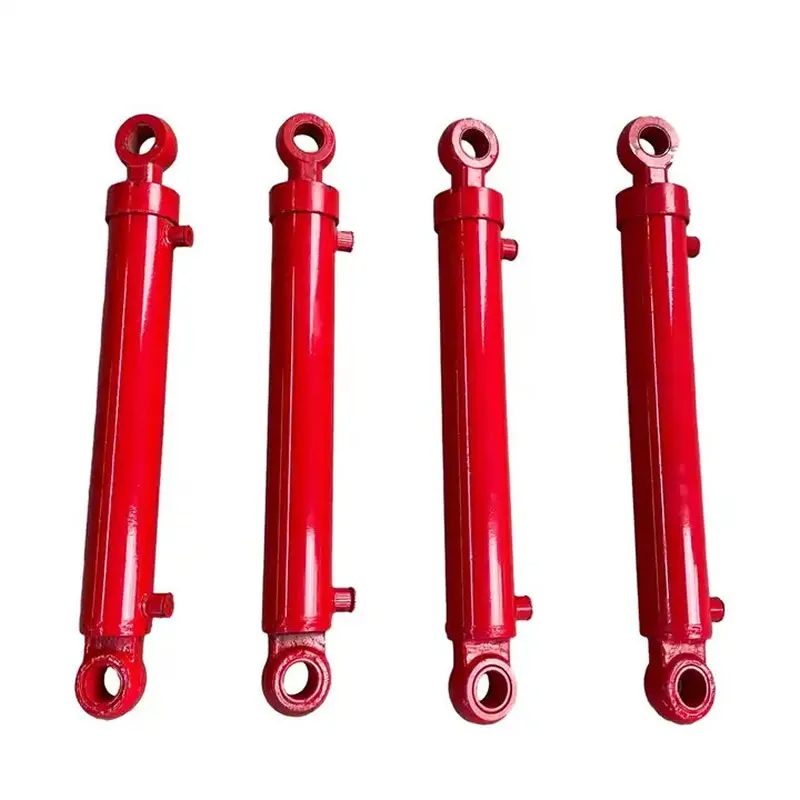

Low-cost Customized Double-acting Ear-ring Hydraulic Cylinders for Construction Machinery

Raydafon Group's low-cost customized double-acting ear-ring hydraulic cylinders for construction machinery deliver reliable performance and durability, ideal for demanding projects. Crafted with precision engineering, they offer cost-effective solutions for contractors and engineers, reducing downtime and enhancing efficiency. Experience trust and confidence with every use.
Send Inquiry
Product Description
Low-cost Customized Double-acting Ear-ring Hydraulic Cylinders for Construction Machinery
Low-cost Customized Double-acting Ear-ring Hydraulic Cylinders for Construction Machinery
Low-cost Customized Double-acting Ear-ring Hydraulic Cylinders for Construction Machinery
Low-cost Customized Double-acting Ear-ring Hydraulic Cylinders for Construction Machinery
Low-cost Customized Double-acting Ear-ring Hydraulic Cylinders for Construction Machinery
Recommended by seller

Truck Crane Extended Cylinder High Quality Hydraulic Cylinder Multi-section Telescopic Hydraulic Cylinder

$280-300 / dozen

1 dozen

Double Acting Hydraulic Thumb Cylinder Hydraulic Cylinder for Press Machines

$280-300 / dozen

1 dozen

Low Cost Hydraulic Cylinders Flanged Hydraulic Cylinders Customized Double Acting Hydraulic Cylinders

$280-300 / dozen

1 dozen

Auto Level System for RV Motorhome Caravan Outrigger Legs 500mm Inner Tube Diameter Hydraulic Cylinder

$230-280 / bag

1 bag

Low-cost Customized Double-acting Ear-ring Hydraulic Cylinders for Construction Machinery
Hydraulic Support Jack
Work Press
Customized
Delivery Time
Discuss delivery time based on order quantity
Cylinder Model
Rated pressure (MPa)
Maximum Cylinder Diameter (mm)
aximum thrust(T)
Stroke (mm)
M
4TG-E150*830ZJ/A
16
156
30
830
M22*1.5 internal thread
4TG-E140*800ZJ/A
16
141
25.5
800
M27*2 internal thread
4TG-E140*730ZJ/A
16
141
25.5
730
M27*2 internal thread
4TG-E135*800ZJ/A
16
141
25.5
800
M27*2 internal thread
4TG-E135*730ZJ/A
16
141
25.5
730
M27*2 internal thread
4TG-E130*750ZJ/A
16
135
23.4
750
M27*2 internal thread
Sanitation Equipment Cylinder
Work Press
Customized
Rod Diameter
Customized
Journey
Customized
Cylinder height
Customized
Applicable Media
Hydraulic Oil
Work Pressure
20Mpa Or Customized
Application
Various Hydraulic Equipment
Excavator Bucket Cylinder
Work Press
Customized
Delivery Time
iscuss delivery time based on order quantity
model
Installation Distance (mm)
Journey(mm)
Cylinder Diameter (mm)
Rod Diameter (mm)
Work Pressure (MPa)
Oil Port Size (mm)
HSG-110/70*350-00
680
350
110
70
25
G1/2”
HSG-CA-CA-125/70X200-00
665
200
125
70
20
M16*1.5
SG-G220X800-00
900
800
220
160
20
G1/2”
HSG-CA-CA-300/220X2180-00
3100
300
220
2180
20
G1/2”
HSG-340/250*1200-00
990
340
250
1200
25
G1/2”
Mining Machinery Cylinder
Work Press
Customized
After-sales
One-year warranty
Delivery Time
Discuss delivery time based on order quantity
Material
27 Silicon Manganese
Piston rod material
42 CrMo Forging
color
Customizable
Sanitation Equipment Cylinder/Agricultural machinery cylinder
Work Press
Customized
model
Product Name
Cylinder Diameter
Rod Diameter
Journey
Installation Distance
Mounting Holes
Work Pressure
Operating Temperature











Split Station
Displacement Cylinder
100
70
3200
20
50
18 1
homoeothermy
Hook Cylinder
80
45
125
430
35
16
homoeothermy
Main Push Head Cylinder
160
110
2700
1000
60
16
homoeothermy
Lock Box Cylinder
63
32
140
420
25
16
homoeothermy
Push-Pull Box Cylinder
63
32
240
108
25
16
homoeothermy
Door Lifting Cylinder
63
35
1010
92
25
16
homoeothermy
Flip Cylinder
100
70
560
890
50
16
homoeothermy
Push Head Cylinder
125
90
1625
2120
50
16
homoeothermy









Vertical Stand
Safety Hook Cylinder
50
28
125
365
25
18
homoeothermy
Pressing Cylinder
250
180
1850
1000
180球头
25
homoeothermy
Hanging Box Cylinder
50
28
145
405
25
18
homoeothermy
Push Plate Cylinder
145
63
3900
1800
50
21
homoeothermy
Pressing Cylinder
180
125
1450
700
70
25
homoeothermy
Gate Cylinder
63
45
1300
500
25
18
homoeothermy







All-In-One Station
Push Head Cylinder
110
80
800
1100
45
16
homoeothermy
Tailgate Cylinder
63
45
520
880
25
16
homoeothermy
Flip Cylinder
100
70
530
930
40
16
homoeothermy
Rear Door Locking Cylinder
50
28
100
355
17
16
homoeothermy
Compression garbage truck cylinder
