High Quality Professional Hydraulic Manufacturing Double Acting Engineering Hydraulic Cylinder, 500mm, 1000mm, Etc

Raydafon Group's High Quality Professional Hydraulic Manufacturing Double Acting Engineering Hydraulic Cylinder, available in 500mm, 1000mm, and more, delivers superior performance for demanding industrial applications. Built with premium materials and advanced engineering, it ensures durability, reliability, and efficiency, making it ideal for engineers, contractors, and manufacturers. Experience enhanced productivity and peace of mind with our standout design, backed by robust quality assurance—unlock peak hydraulic power today.

Send Inquiry

Product Description

Donte Mine safety

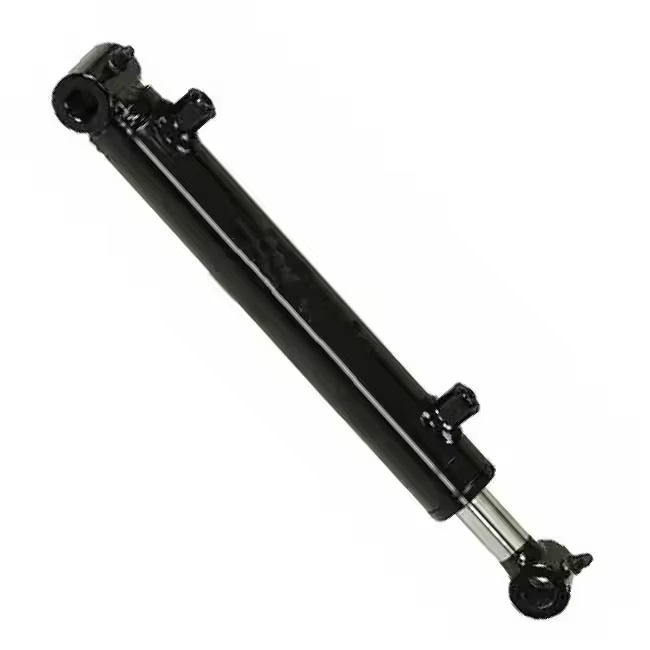

Y type earring hydraulic cylinder

Donte Mine safety

Oil injection hole: automatic welding process

Donte Mine safety

Optional integrated, threaded and other connection methods

Donte Mine safety

Equipped with professional designers, provide parameters, any model can be customized

Donte Mine safety

Double Y, Y earrings, etc

Donte Mine safety

Good quality dust. proof sealing, Oilsealing etcsealing brand Haliteupgraded slider

design

Model number	Inside diameter of cylinder	Cylinder pole diameter	journey	Close mounting distance	weight
Model number		（mm）	（mm）	（mm）	weight	（mm）
HSG40/25-100-330 Model number	40	25	100	330	3.5kg
HSG40/25-200-430 Model number	40	25	200	430	4kg
HSG40/25-300-530 Model number	40	25	300	530	5kg
HSG40/25-400-630	40	25	400	630	6kg
HSG40/25-500-730 Model number	40	25	500	730	7kg
HSG40/25-600-830	40	25	600	830	8kg

Model number	Inside diameter of cylinder	Cylinder pole diameter	journey	Close mounting distance	weight
Model number		（mm）	（mm）	（mm）	weight	（mm）
HSG50/30-100-340 Model number	50	30	100	340	4.5 kg
HSG50/30-200-440 Model number	50	30	200	440	5.5 kg
HSG50/30-300-540 Model number	50	30	300	540	6.5kg
HSG50/30-400-640 Model number	50	30	400	640	8kg
HSG50/30-500-740 Model number	50	30	500	740	9kg
HSG50/30-600-840 Model number	50	30	600	840	10.5kg

Model number	Inside diameter of cylinder	Cylinder pole diameter	journey	Close mounting distance	weight
Model number		（mm）	（mm）	（mm）	weight	（mm）
HSG63/35-100-340	63	35	100	370	7kg
HSG63/35-200-440	63	35	200	470	8kg
HSG63/35-300-540	63	35	300	570	10kg
HSG63/35-400-640	63	35	400	670	11.5kg
HSG63/35-500-740	63	35	500	770	13 kg
HSG63/35-600-840	63	35	600	870	15kg

Model number	Inside diameter of cylinder	Cylinder pole diameter	journey	Close mounting distance	weight
Model number		（mm）	（mm）	（mm）	weight	（mm）
HSG80/50-100-340 Model number	80	50	100	400	13 kg
HSG80/50-200-440 Model number	80	50	200	500	15.5kg
HSG80/50-300-540 Model number	80	50	300	600	18 kg
HSG80/50-400-640	80	50	400	700	20kg
HSG80/50-500-740 Model number	80	50	500	800	23 kg
HSG80/50-600-840 Model number	80	50	600	900	26 kg


Model number	Inside diameter of cylinder	Cylinder pole diameter	journey	Close mounting distance	weight
Model number		（mm）	（mm）	（mm）	weight	（mm）
HSG100/63-100-340	100	63	100	500	25kg
HSG100/63-200-440	100	63	200	600	28kg
HSG100/63-300-540	100	63	300	700	31 kg
HSG100/63-400-640	100	63	400	800	34 kg
HSG100/63-500-740 Model number	100	63	500	900	37 kg
HSG100/63-600-840	100	63	600	1000	40kg

1.Forklift Tilt Hydraulic Cylinder

The steering hydraulic cylinder is used to control the steering operation of forklifts. It achieves the turning of the steering wheel by pushing the steering mechanism. The steering hydraulic cylinder usually has a small stroke and fast response speed to achieve precise handling and flexibility of forklifts.

Drawing number

bore diameter (D)

rod diameter (d)

stroke (S)

Installation distance (L)

working pressure

Interface dimensions (M)

weight

QA20V500-405000-000

Φ60

Φ30

109

18MPa

2-M14*1.5

3.4kg

S16N450-600000-001Z

Φ63

Φ25

368

18.1MPa

2-G1/4

8.2kg

RTE35M300-600000-500

Φ85

Φ35

180

565

18.1MPa

2-M16*1.5

17kg

A15N450-600000AZ

Φ65

Φ25

109

514

18.1MPa

2-G1/4

11.6kg

A30M300-600000-000B

Φ70

Φ30

156

453

18.1MPa

2-G1/4

12kg

A35M300-600000-000C

Φ80

Φ30

156

456.5

18.1MPa

2-G1/4

13kg

A45M300-600000Z

Φ100

Φ40

193

498

18.1MPa

2-M16*1.5

22kg

2.Forklift Lifting Hydraulic Cylinder

Lifting hydraulic cylinder is one of the most common types of hydraulic cylinders in forklifts. It is used to lift or lower the fork arm to lift and lower the cargo in a vertical direction. Lifting hydraulic cylinders usually have large thrust and load-bearing capacity to cope with the weight of the forks and cargo.

drawing number

bore diameter (D)

rod diameter (d)

stroke (S)

Installation distance (L)

working pressure

Interface dimensions (M)

weight

N30M300-5/400000-000

Φ56

Φ45

1500

1658

18.1MPa

G1/2

32.6kg

A2A30M300-400000-000

Φ56

Φ45

1500

1658

18.1MPa

M22*1.5

36kg

3.5N4.5H-400000-003

Φ60

Φ45

1505

1780

17.5MPa

M22*1.5

41kg

N35M300-5/400000-001A

Φ60

Φ45

1500

1808

18.1MPa

G1/2

46kg

A2A35M300-400000-000

Φ60

Φ45

1500

1808

18.1MPa

M22*1.5

50kg

3.Forklift Steering Cylinder

Controls the steering angle and directional assistance of the steering axle. The steering cylinder is generally a double acting double piston rod piston hydraulic cylinder.

drawing number

bore diameter (D)

rod diameter (d)

stroke (S)

Installation distance (L)

working pressure

Interface dimensions (M)

weight

3CS17G-30-00T4

Φ50

Φ25

295

503

16MPa

2-M16*1.5

7kg

7B3-303000-00TA

Φ50

Φ28

750

1040

18MPa

M14*1.5;M16*1.5

14kg

5CS17-40-00Z

Φ50

Φ25

619

889

15MPa

M14*1.5

13kg

8M3-304000A-625

Φ63

Φ32

855

1174

20MPa

2-M16*1.5

22kg

7B3-304000-00

Φ70

Φ30

300

536

18MPa

2-M14*1.5

13.5kg
