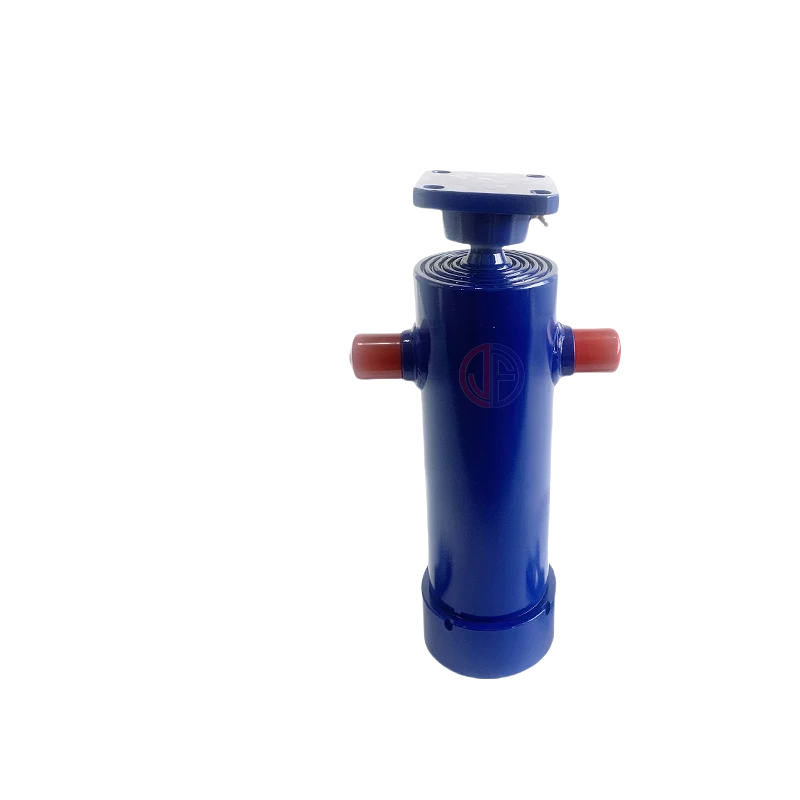

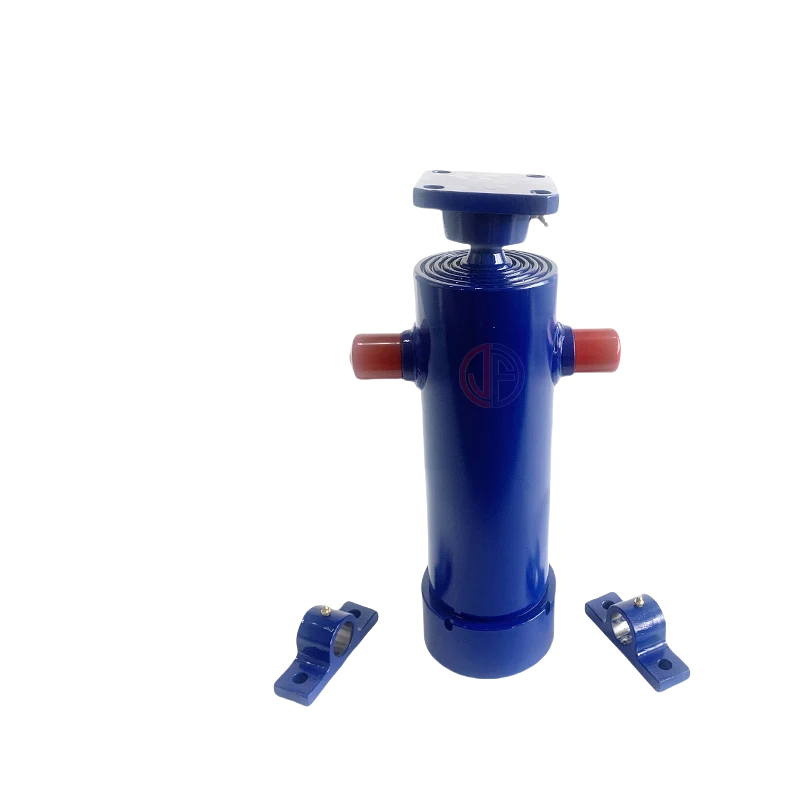

Factory Customized Tilt Tray Truck Underbody Hydraulic Cylinder

Donte Mine safetyY type earring hydraulic cylinderDonte Mine safetyOil injection hole: automatic welding processDonte Mine safetyOptional integrated, threaded and other connection methodsDonte Mine safetyEquipped with professional designers, provide parameters, any model can be customizedDonte Mine ......

Send Inquiry

Product Description

Donte Mine safety

Y type earring hydraulic cylinder

Donte Mine safety

Oil injection hole: automatic welding process

Donte Mine safety

Optional integrated, threaded and other connection methods

Donte Mine safety

Equipped with professional designers, provide parameters, any model can be customized

Donte Mine safety

Double Y, Y earrings, etc

Donte Mine safety

Good quality dust. proof sealing, Oilsealing etcsealing brand Haliteupgraded slider

design

Excavator Bucket Cylinder
Work Press	Customized
Delivery Time	Discuss delivery time based on order quantity
Cylinder Model	Name	pressure（MPa）	Stroke（mm）	Dia（mm）
HSGL63/35x505	05 loader bucket cylinder	16	505	63（35）
HSG1.6335x330	05 type loader steering cylinder			63（35）	330
HSG5028x250	05 type loader steering cylinder			250	50（28）
HSG950x550	Excavator boom cylinder	21	550	90（50）
HSG7045x390	Excavator outrigger cylinder	16	390	70（45）
HSG85/50x580	Excavator arm cylinder	21	580	85（50）
HSG01-70V45x410	Excavator right sway cylinder	16	410	70（45）
HSG02-7045x410	Excavator left swing cylinder		410
HSG7045x620	Excavator bucket cylinder				620

1.Forklift Tilt Hydraulic Cylinder

The steering hydraulic cylinder is used to control the steering operation of forklifts. It achieves the turning of the steering wheel by pushing the steering mechanism. The steering hydraulic cylinder usually has a small stroke and fast response speed to achieve precise handling and flexibility of forklifts.

Drawing number

bore diameter (D)

rod diameter (d)

stroke (S)

Installation distance (L)

working pressure

Interface dimensions (M)

weight

QA20V500-405000-000

Φ60

Φ30

109

18MPa

2-M14*1.5

3.4kg

S16N450-600000-001Z

Φ63

Φ25

368

18.1MPa

2-G1/4

8.2kg

RTE35M300-600000-500

Φ85

Φ35

180

565

18.1MPa

2-M16*1.5

17kg

A15N450-600000AZ

Φ65

Φ25

109

514

18.1MPa

2-G1/4

11.6kg

A30M300-600000-000B

Φ70

Φ30

156

453

18.1MPa

2-G1/4

12kg

A35M300-600000-000C

Φ80

Φ30

156

456.5

18.1MPa

2-G1/4

13kg

A45M300-600000Z

Φ100

Φ40

193

498

18.1MPa

2-M16*1.5

22kg

2.Forklift Lifting Hydraulic Cylinder

Lifting hydraulic cylinder is one of the most common types of hydraulic cylinders in forklifts. It is used to lift or lower the fork arm to lift and lower the cargo in a vertical direction. Lifting hydraulic cylinders usually have large thrust and load-bearing capacity to cope with the weight of the forks and cargo.

drawing number

bore diameter (D)

rod diameter (d)

stroke (S)

Installation distance (L)

working pressure

Interface dimensions (M)

weight

N30M300-5/400000-000

Φ56

Φ45

1500

1658

18.1MPa

G1/2

32.6kg

A2A30M300-400000-000

Φ56

Φ45

1500

1658

18.1MPa

M22*1.5

36kg

3.5N4.5H-400000-003

Φ60

Φ45

1505

1780

17.5MPa

M22*1.5

41kg

N35M300-5/400000-001A

Φ60

Φ45

1500

1808

18.1MPa

G1/2

46kg

A2A35M300-400000-000

Φ60

Φ45

1500

1808

18.1MPa

M22*1.5

50kg

3.Forklift Steering Cylinder

Controls the steering angle and directional assistance of the steering axle. The steering cylinder is generally a double acting double piston rod piston hydraulic cylinder.

drawing number

bore diameter (D)

rod diameter (d)

stroke (S)

Installation distance (L)

working pressure

Interface dimensions (M)

weight

3CS17G-30-00T4

Φ50

Φ25

295

503

16MPa

2-M16*1.5

7kg

7B3-303000-00TA

Φ50

Φ28

750

1040

18MPa

M14*1.5;M16*1.5

14kg

5CS17-40-00Z

Φ50

Φ25

619

889

15MPa

M14*1.5

13kg

8M3-304000A-625

Φ63

Φ32

855

1174

20MPa

2-M16*1.5

22kg

7B3-304000-00

Φ70

Φ30

300

536

18MPa

2-M14*1.5

13.5kg

Title goes here.

1. Founded in 2018, Raydafon?Technology?Group?Co.,Limited is a manufacturer specializing in the research, development and manufacture of hydraulic equipment and cylinders. The company is located in Xuying Town, Liaocheng City, Shandong Province. The company has developed rapidly, operated in good faith, and established good cooperative relations with all over the world. Our main business includes the design and manufacture of hydraulic cylinders, hydraulic components and hydraulic systems. We can produce different types of hydraulic products according to your needs.

2. Exporting countries of our company: Our products are exported to more than 100 countries such as the United States, Mexico, Canada, Spain, Russia, Singapore, Thailand, India and so on.

3. Role to customers: customized according to the size and material quality provided by customers, support non-standard customization. Ability to measure, survey and issue technical plans.Provide one-stop service during construction, logistics and distribution, and after-sales service to meet customers' needs.

4. Corporate services-we provide:https://sdyoubaite.en.alibaba.com/company_profile.html 1)Good quality control 2)Very competitive price 3)The most technologically advanced products 4)The most professional consumer electronics team 5)OEM and ODM services with smooth and effective communication
